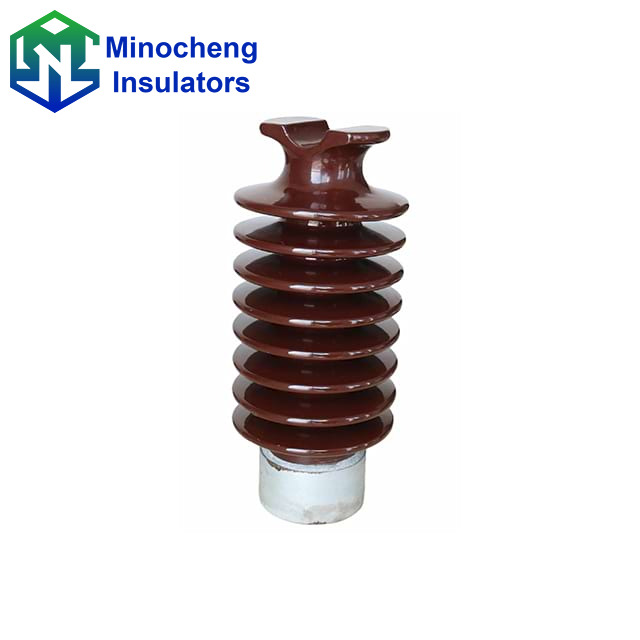

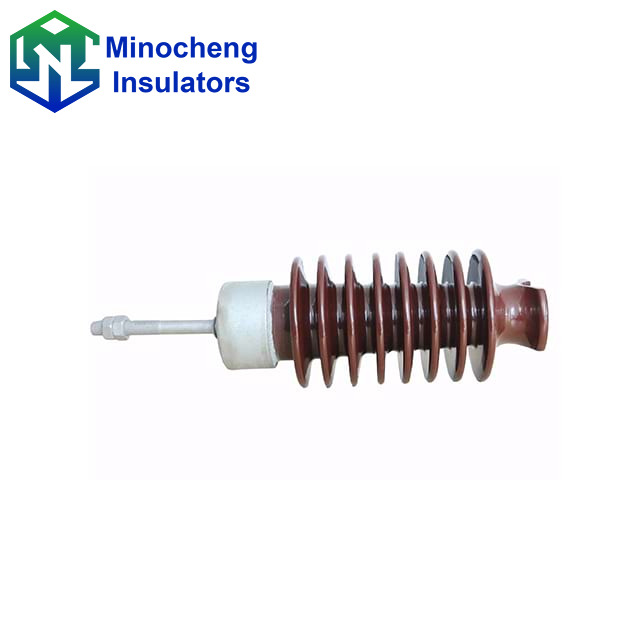

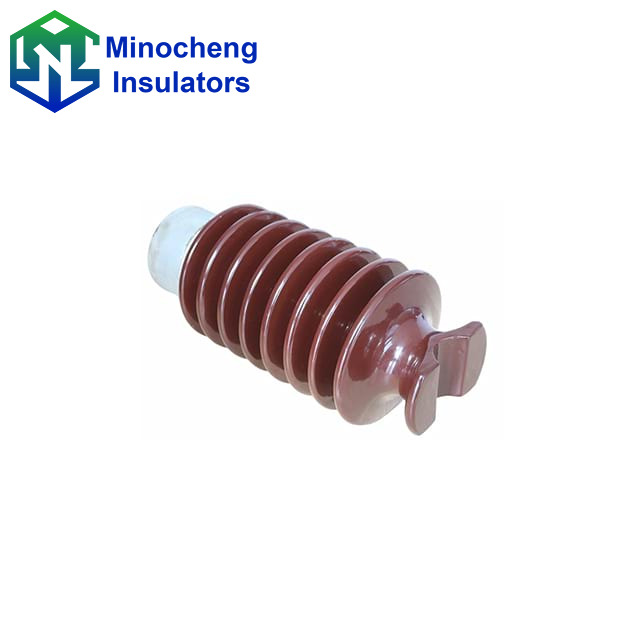

High-strength structural design: The column-type porcelain insulator adopts a solid non-breakable porcelain body structure, combined with an optimized column foot surface design. The mechanical failure load reaches 12.5KN, which can stably withstand the weight of the conductor, wind load and vibration impact, meeting the long-term support requirements of high-voltage structures.
Excellent insulation performance: The creepage distance is 737mm, the dry flashover voltage is 125KV, the wet flashover voltage is 100KV, the positive and negative impulse flashover voltages reach 210KV and 260KV respectively, effectively blocking leakage and arc flashover.
Weather resistance and anti-fouling characteristics: The kaolin-fired porcelain body has both high-temperature resistance and strong corrosion resistance. The umbrella skirt structure enhances self-cleaning ability, enabling stable operation in high humidity, heavy pollution and harsh environments such as mines, without aging or deterioration.
Low loss and low maintenance: The operating loss is low. The porcelain body material does not require regular coating maintenance. The structural stability is strong, and the service life can reach over 30 years.
Customization: Supports OEM parameter fine-tuning. The number of umbrella skirts, glaze color and metal accessory materials can be adjusted to balance general and personalized needs.
Model | ANSI 57-3 |
Creepage distance (mm) | 737 |
Dry Arcing Distance(mm) | 311 |
Cantilever Strength(kN) | 12.5 |
Type application voltage (kV) | 45 |
Low frequency dry flashover voltage (kV) | 125 |
Low frequency wet flashover voltage (kV) | 100 |
Critical impulse flashover voltage, positive (kV) | 210 |
Critical impulse flashover voltage, negative (kV) | 260 |
Test voltage to ground (kV) | 30 |
Max RIV at 1000KHz (μv) | 200 |
Net weight, approximate (kg) | 11 |
Color | Brown or White |
Main lines of urban distribution network: Suitable for 20KV and below distribution lines in urban built-up areas and new urban areas.
Substation power supply for industrial parks: Applicable to internal distribution lines of small and medium-sized industrial parks and industrial zones.
Urban-rural fringe and county-level distribution network: Suitable for main distribution lines in urban-rural fringes, county towns and townships.
Moderate pollution area lines.
Upgrade and renovation of old lines.
