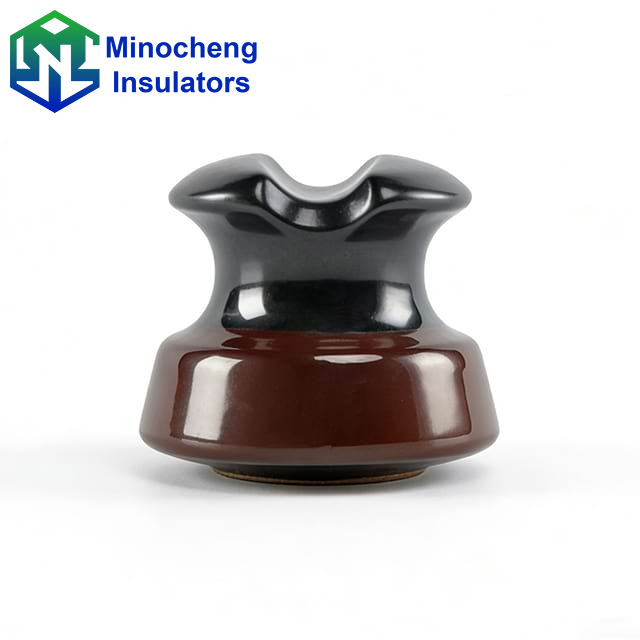

Excellent electrical insulation performance: The 55-2 pin insulator has a withstand voltage of 70kV under power frequency, and a positive impulse flashover voltage of 70kV. The dense porcelain glaze layer on the surface does not accumulate charges easily, effectively resisting corona and arc, and maintaining stable insulation effect in both high and low voltage fields, significantly reducing the risk of line leakage.
Stable mechanical load-bearing capacity: The cantilever strength is 11kN, which can effectively withstand multiple mechanical stresses such as the weight of the conductor, outdoor wind load, and ice load. The connection structure between the glued zinc sleeve and the steel foot is firm, resistant to vibration and impact, and suitable for the complex mechanical usage environment in the outdoors.
Standardized design with high adaptability: It fully complies with international common ANSI and IEC standards, and the structural dimensions are matched with mainstream power line accessories. Installation does not require special tools, and it can be directly replaced with products of the same specification. At the same time, it supports customization of white, brown, etc. glaze colors to meet the needs of different projects.
Model | 55-2 |
Creepage Distance(mm) | 127 |
Dry Arcing Distance(mm) | 86 |
Cantilever Strength(kN) | 11 |
Low Frequency Dry FlashoverVoltage(kV) | 45 |
Low Frequency Wet Flashover Voltage(kV) | 25 |
Critical lmpulse Flashover Pos(kV) | 70 |
Critical lmpulse Flashover Neg(kV) | 85 |
Power Frequency Puncture Voltage (kV) | 70 |
Test Voltage to Ground(kV) | 5 |
Maximum RlV at 1000KHZ(μv) | 50 |
Net Weight Each APPROX(kg) | 0.65 |
10kV and below medium and high voltage overhead transmission lines: Suitable for the construction of overhead lines for long-distance power transmission in the wild.
Urban and rural municipal distribution networks: Can be applied to municipal overhead lines in urban residential areas and townships, suitable for use in urban areas with slight pollution and rural areas with diverse climates.
Industrial plant power supply lines: Suitable for high and low voltage internal power supply overhead lines in various industrial parks.
Rural power grid renovation project: As the core insulation component for rural power grid upgrade, it is suitable for the complex geographical and climatic conditions in rural areas, resistant to lightning strikes and able to withstand harsh outdoor environments. Moreover, the product has high cost-effectiveness and meets the requirements of large-scale and low-cost construction of rural power grid renovation.
