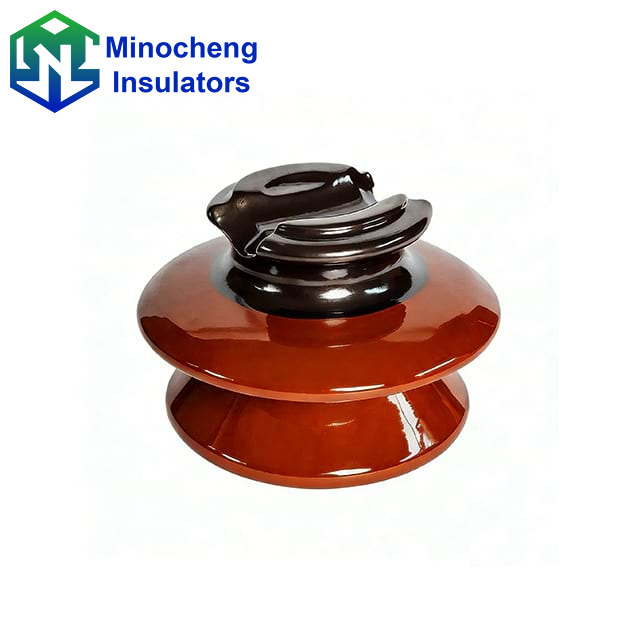

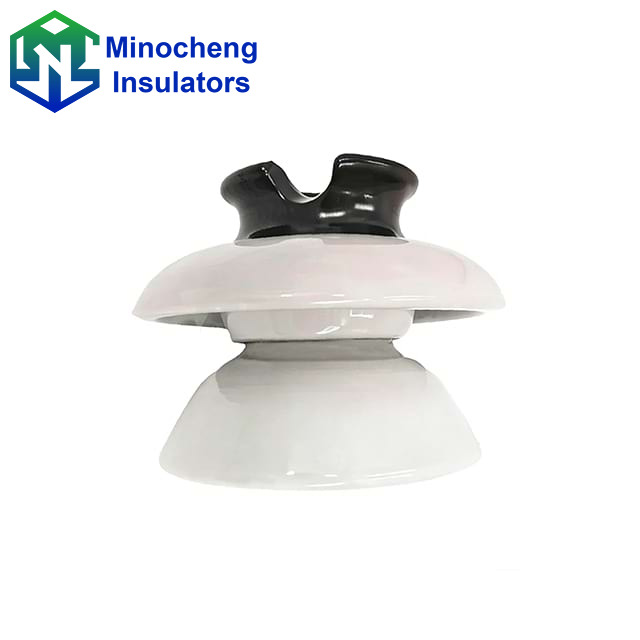

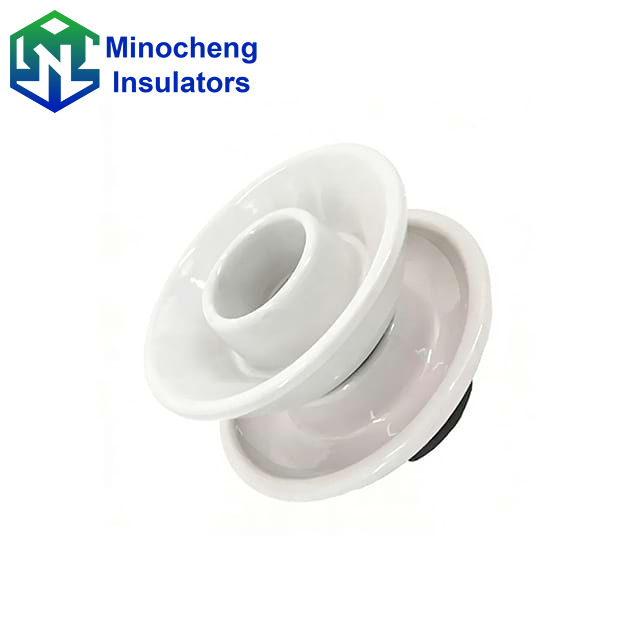

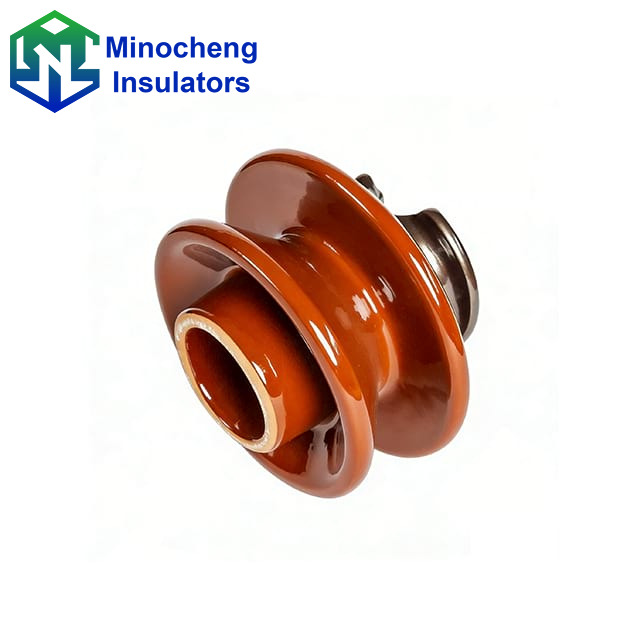

Electrical insulation performance grade: The product surface is coated with a dense anti-fouling glaze layer, which is not prone to accumulation of dirt and has excellent anti-chargation effect. It can maintain a stable insulation state in medium and low voltage electric fields, effectively reducing the risks of line flashover and leakage, and is suitable for complex outdoor electrical usage environments.
Robust mechanical structure: The glued zinc sleeve is tightly connected to the steel foot, capable of withstanding multiple mechanical stresses such as the weight of the conductor, outdoor wind load, and ice load. It is resistant to vibration and impact, has no risk of loosening or falling off, and has a long service life.
Standardized design with high adaptability: It fully complies with international and domestic industry standards. The structural dimensions are precisely matched with mainstream medium and low voltage line fittings and accessories. Installation does not require special tools. It can be directly replaced with products of the same specification and also supports custom glaze color.
Model No. | 56-1 | |
Main Dimensions(mm) | D | 191 |
H | 146 | |
d | 89 | |
d1 | 35 | |
h | 51 | |
R1 | 19 | |
R2 | 14 | |
Creepage Distance (mm) | 330 | |
Min. Pin Length (mm) | 152 | |
Cantilever Strength (kN) | 11 | |
Flashover Voltage | Dry Power Frequency(kV) | 95 |
Wet Power Frequency(kV) | 60 | |
Critical Impulse Pos(kV) | 150 | |
Critical Impulse Neg(kV) | 190 | |
Power Frequency Puncture Voltage (kV) | 130 | |
Radio Influence Voltage | Test Voltage to Ground(kV) | 15 |
Max. RIV at 1 MHz(μV) | 100 | |
Weight (kg) | 3.7 | |
10kV and below medium and low voltage distribution lines for urban and rural areas: Suitable for overhead distribution construction in urban streets and rural communities. Installation is convenient and meets the requirements for large-scale municipal distribution construction.
Overhead power supply lines for rural power grids: Can be applied to rural fields, mountainous areas, etc. for rural power grid construction and renovation.
Power supply lines for small and medium-sized industrial plants: Suitable for internal overhead distribution systems in light industry and processing-type small and medium-sized industrial parks.
Municipal park, industrial park, logistics park and other municipal supporting overhead lines: Applied to municipal supporting overhead lines in urban parks, industrial parks, logistics parks, etc. It meets the requirements for standardized and intensive construction of the park, has low maintenance costs after installation, and is highly compatible with the park's power distribution system.
