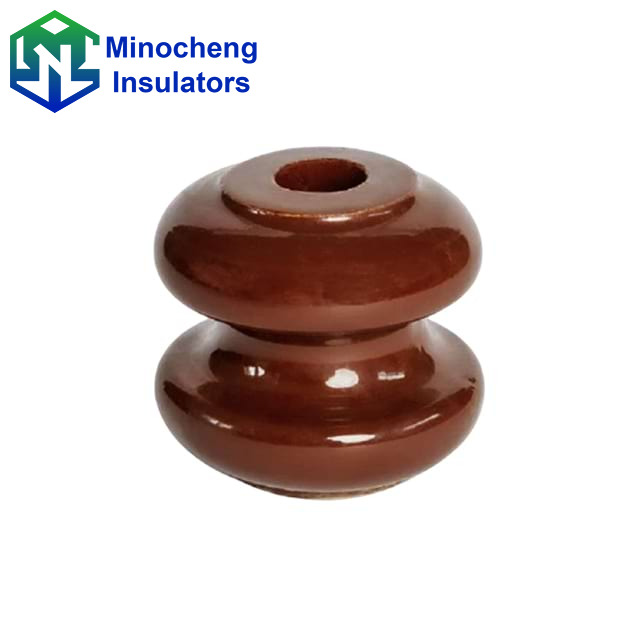

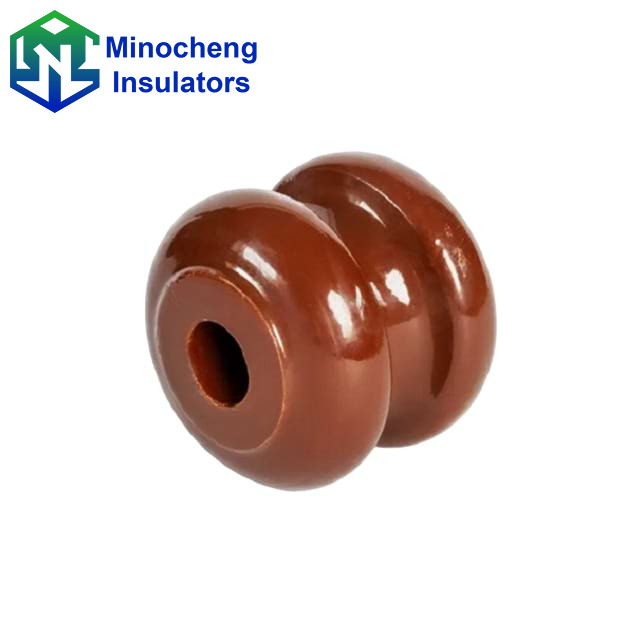

Strong structural load-bearing capacity: The conical hole design of the 1617 Shackle insulator ensures a more even distribution of load, significantly reducing the risk of porcelain body fracture due to heavy loads. It has excellent mechanical load-bearing performance and can be installed horizontally or vertically, meeting the installation requirements of different specifications of poles and crossarms.
Weather-resistant insulation with excellent anti-fouling performance: Selecting high-quality porcelain materials, it has high dielectric strength, effectively avoiding electrical breakdown and flashover problems; the surface is smooth and not prone to accumulation of dirt and dust, resistant to high and low temperatures, and resistant to ozone corrosion.
Convenient installation and wider adaptability: Installation is convenient without the need for complex auxiliary materials; it is compatible with various specifications of low-voltage conductors, and can be quickly constructed in different distribution scenarios, significantly reducing on-site installation and later maintenance costs.

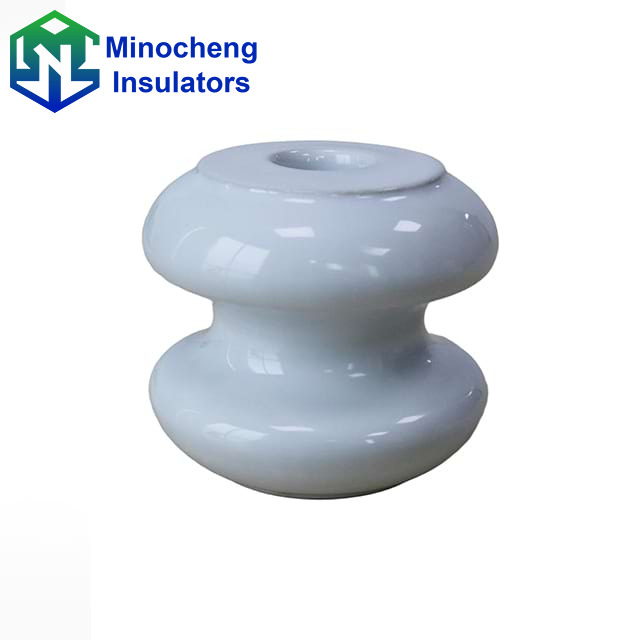

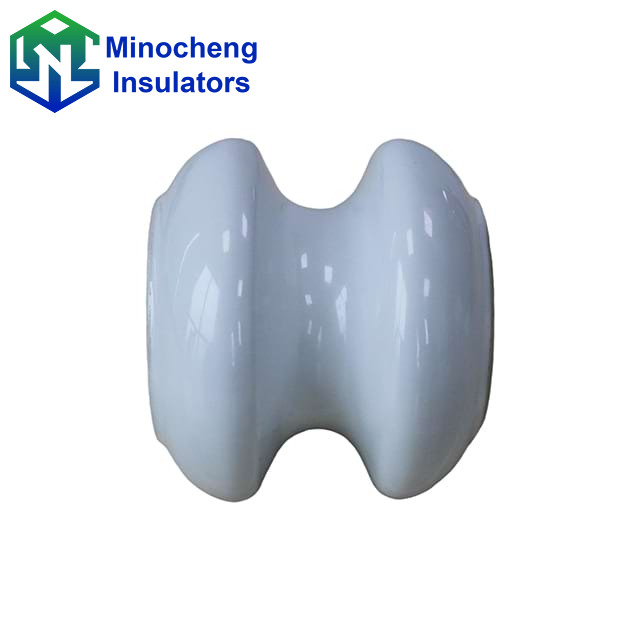

Customization: Supports OEM parameter fine-tuning, can adjust the glaze color, balancing general and personalized needs.
Model | 1617 | |
Main Dimensions (mm) | H | 65 |
D | 76 | |
d | 46 | |
d1 | 17 | |
R | 9 | |
Minimum Power Frequency Flashover Voltage | Dry(kV) | 20 |
Wet (kV) | 9 | |
Mechanical Failing Load(kN) | 9 | |
Weight(kg) | 0.4 | |
Angle and terminal sections of low-voltage distribution lines: Applicable to angle and terminal sections of low-voltage distribution lines of 11kV and below.
Urban and rural outdoor overhead distribution system: Widely used in outdoor overhead distribution lines of urban communities and rural villages, suitable for diverse overhead distribution layouts in urban and rural areas, enhancing the overall stability of the low-voltage distribution system.
Low-voltage outgoing section of small transformer and distribution station: Used for the low-voltage outgoing section of small substations and community distribution rooms, providing insulation isolation and mechanical support for the outgoing wires to avoid equipment short circuits and safety accidents.
1. What about your delivery time?
It should depend on your order quantity.
2. How can you guarantee quality?
Samples are available and we can send to you. The sample fee will be deducted from your first order. We always do the final inspection before shipment.
3. What is the payment terms?
T/T 30% deposit in advance, and 70% balance payment before shipment.
4. What else can you do for us?
We supply the customized services, reply your inquiry within 24 hours and support the excellent after-sales services.
