ANSI standard compatibility, mechanical performance compatible with conventional tension: 11kN mechanical breaking load, matching the conventional tension sections of low-voltage distribution networks, excellent corrosion resistance, good resistance to line stretching and bending impact.

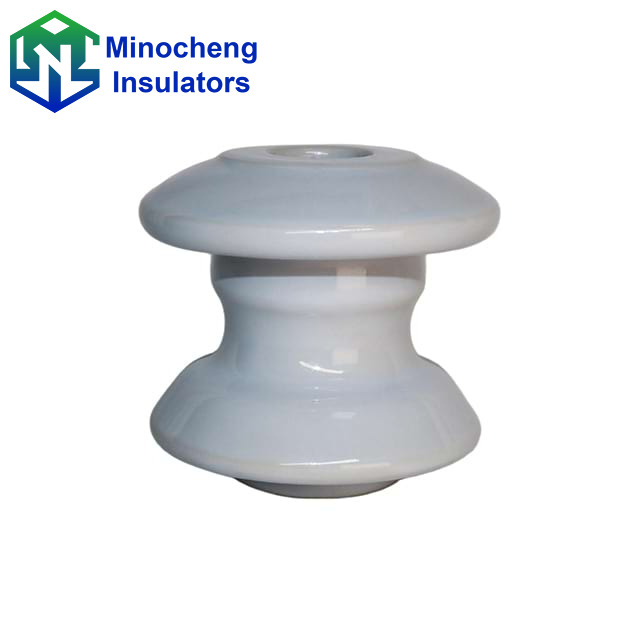

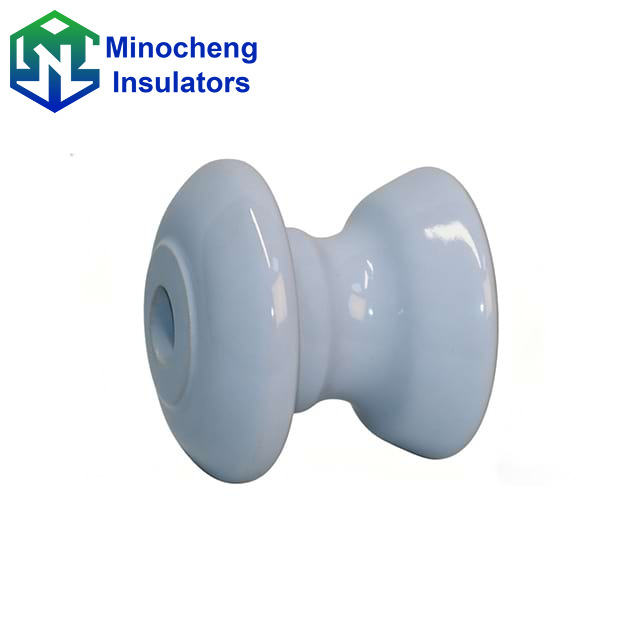

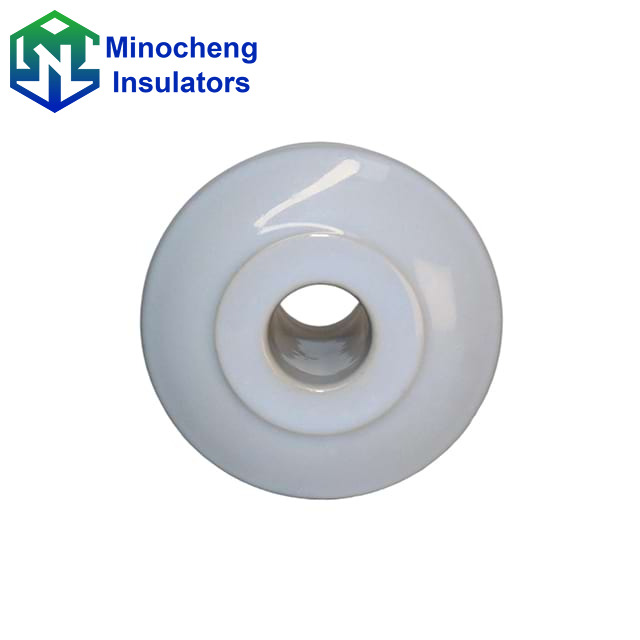

Excellent electrical insulation performance: The ED-2 Shackle insulator has a withstand voltage of 25kV for working frequency in dry conditions and 12kV for wet conditions. It shows no insulation attenuation under outdoor complex conditions such as rainy days and light pollution, effectively preventing leakage and ensuring the stability of low-voltage distribution network operation.
Convenient installation with wide adaptability, lower operation and maintenance costs: Dual horizontal and vertical installation methods are compatible with different pole types, simple operation, can be directly fixed on the crossarm, no need for additional fittings, and no frequent maintenance required for outdoor use.

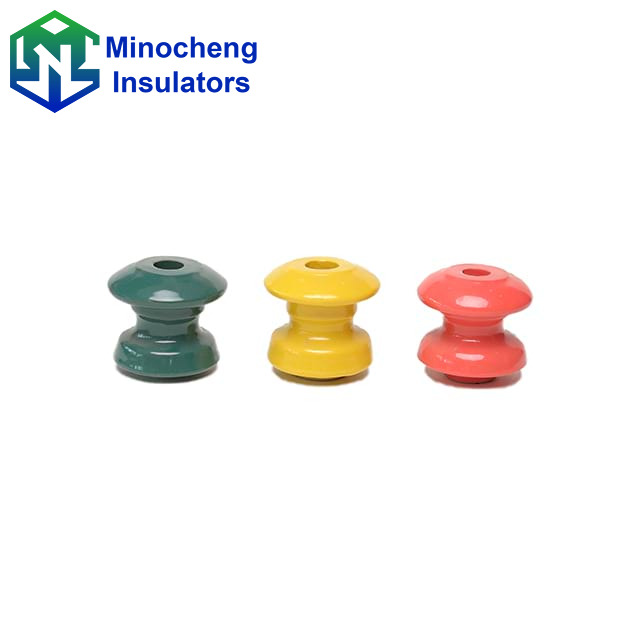

Customization: Supports OEM parameter fine-tuning, can adjust the glaze color, balancing commonality and individual needs.
Model | ED-2 | |
Main Dimensions (mm) | H | 75 |
D | 80 | |
d | 75 | |
d1 | 42 | |
d2 | 20 | |
R | 10 | |
Minimum Power Frequency Flashover Voltage | Dry(kV) | 18 |
9 | 9 | |
Mechanical Failing Load(kN) | 12 | |
Weight(kg) | 0.45 | |
0.4kV low-voltage distribution network conventional terminal pole: Suitable for 10-50mm² conventional cross-sectional conductors. It is a commonly preferred accessory for fixed distribution lines in urban and rural power grids and community distribution network terminals.
Low-voltage distribution network turning angle pole (15°-30°): Suitable for the installation of distribution network turning angles in urban streets and alleys, and rural main roads.
0.4kV low-voltage distribution network main line branch point: Suitable for 10-50mm² branch conductors. It is flexible to install and does not occupy space, and is the core accessory for branch wiring in community, village, and industrial park distribution networks.
