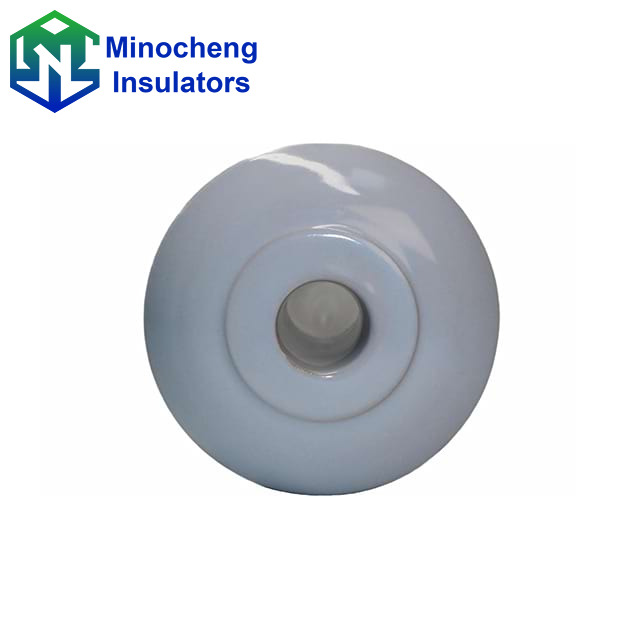

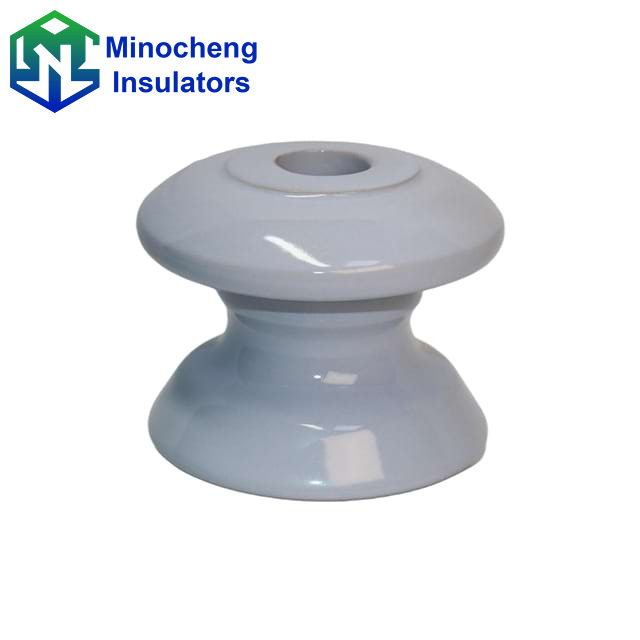

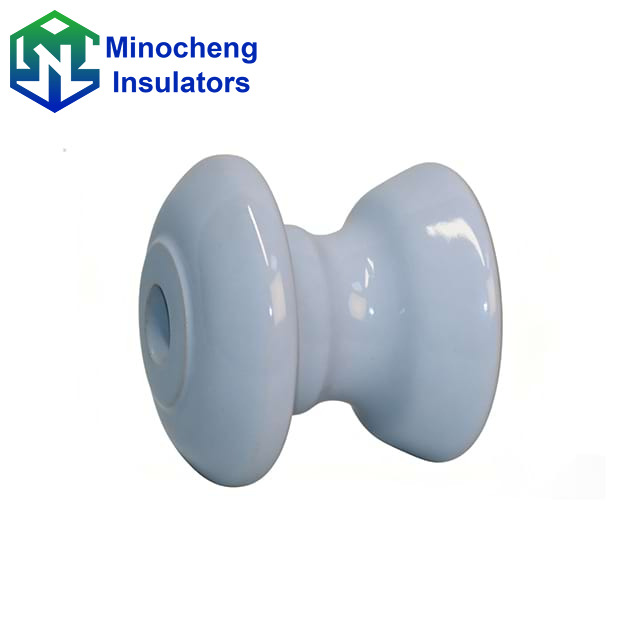

High mechanical strength, in accordance with ANSI standards: The mechanical breaking load reaches 13.6kN, suitable for heavy-load tension sections. The stress distribution of porcelain components is uniform, effectively resisting line stretching and bending impact.
Excellent electrical insulation, stable outdoor performance: The rated withstand voltage of ED-1 Shackle insulator under power frequency is 30kV for dry flashover and 17kV for wet flashover. It can effectively resist leakage in rainy weather. The insulation performance remains unchanged under outdoor temperature variations and mild pollution conditions, ensuring power distribution safety.
Flexible installation, strong adaptability and easy maintenance: Supports both horizontal and vertical installation methods. It is compatible with multiple specifications of 16-70mm² conductors. It can be directly fixed on the crossarm of the pole and is suitable for outdoor use without frequent maintenance.

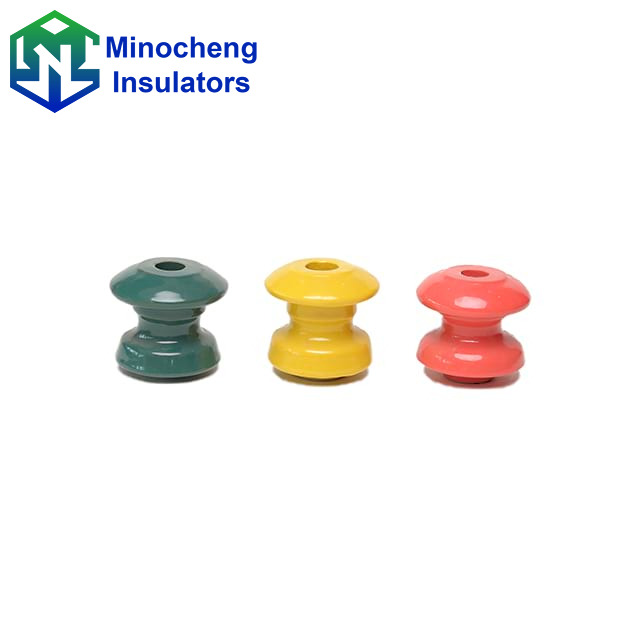

Customization: Supports OEM parameter fine-tuning.Glaze color can be adjusted to balance general and personalized needs.
Model | ED-1 | |
Main Dimensions (mm) | H | 90 |
D | 100 | |
d | 95 | |
d1 | 50 | |
d2 | 22 | |
R | 12 | |
Minimum Power Frequency Flashover Voltage | Dry(kV) | 22 |
Wet (kV) | 10 | |
Mechanical Failing Load(kN) | 14 | |
Weight(kg) | 0.75 | |
0.4kV low-voltage overhead line heavy-load terminal: Suitable for the terminal tension section at the end of 0.4kV overhead distribution lines, capable of withstanding the high tension at the line terminal. It can replace small tension strings and significantly simplify the hardware combination structure. It is the preferred accessory for fixed terminals of urban and rural main distribution networks.
Low-voltage distribution network large-angle pole: Applied at the large-angle turning points of low-voltage distribution lines ≥ 30°, it can effectively balance the lateral heavy tension of the line and is suitable for urban and rural main road distribution network scenarios.
Low-voltage distribution network large-span light-load section: Suitable for 0.4kV low-voltage distribution network with a length of ≤ 50m and a large-span short span distance in light-load sections. It meets the outdoor distribution installation requirements for rural wide areas and urban streets and alleys.
1. What about your delivery time?
It should depend on your order quantity.
2. How can you guarantee quality?
Samples are available and we can send to you. The sample fee will be deducted from your first order. We always do the final inspection before shipment.
3. What is the payment terms?
T/T 30% deposit in advance, and 70% balance payment before shipment.
4. What else can you do for us?
We supply the customized services, reply your inquiry within 24 hours and support the excellent after-sales services.
