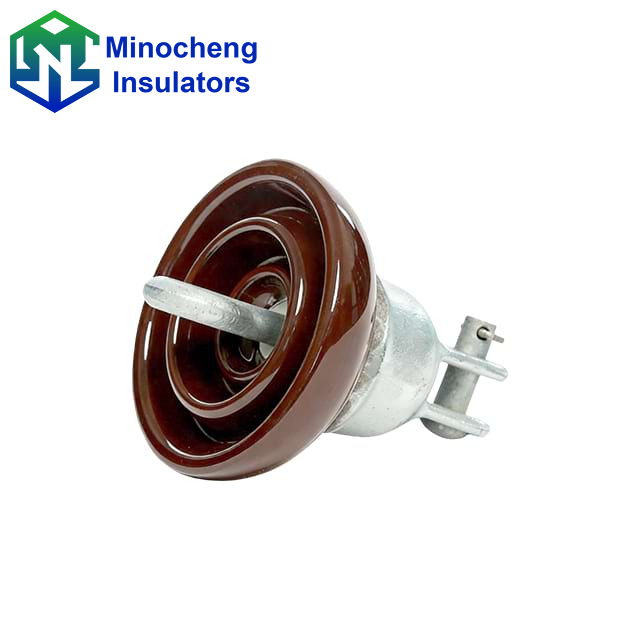

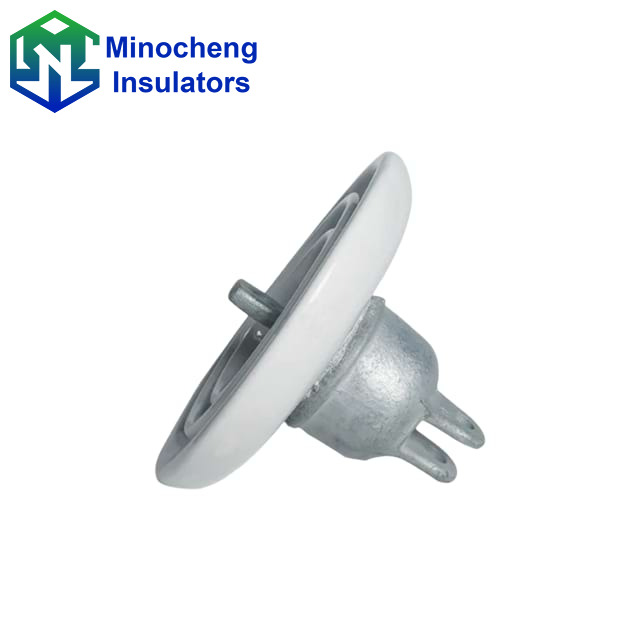

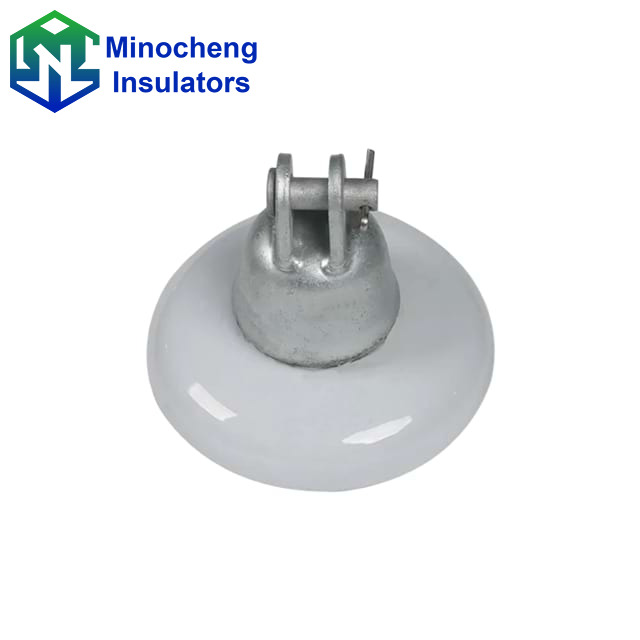

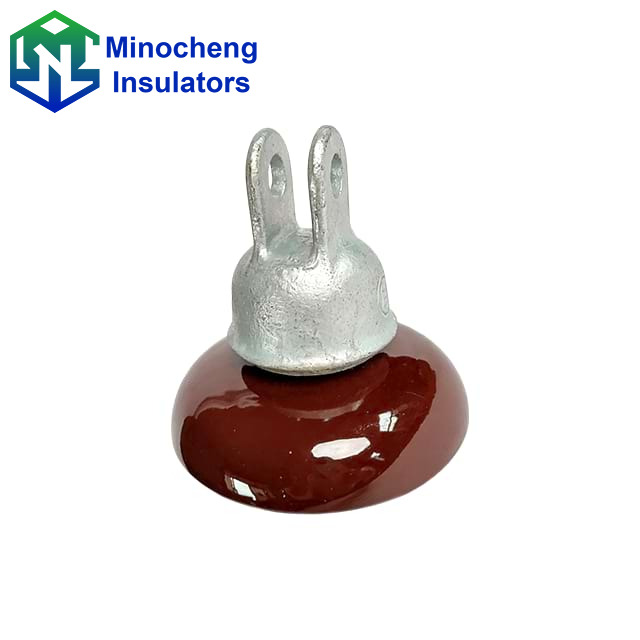

Wide Voltage Range & Strong Compatibility：Standard porcelain disc structure, compatible with ball-and-socket and clevis-and-tongue connections for 6-33kV voltage classes. Directly matches conventional hardware of medium and high-voltage overhead power systems without extra modification, covering all mainstream construction demands.
Excellent Electromechanical Performance：Rigorously electromechanical tested with compliant strength and pressure resistance. Porcelain body and metal fittings are tightly cement-bonded, stably bearing loads with non-attenuating insulation in complex outdoor working conditions.
Mature Design & Broad Scene Adaptability：Classic disc insulation structure fits medium and high-voltage overhead power system suspension needs, perfectly matching universal industry towers and hardware, with easy installation and low later maintenance frequency.
Model No. | ANSI 52-1 | |
Main Dimensions (mm) | Diameter | 165 |
Height | 140 | |
Creepage Distance(mm) | 178 | |
Power-Frequency AverageFlashover Voltage | Dry(kV) | 60 |
Wet(kV) | 30 | |
Critical-Impulse 15x40us WaveAverage Flashover Voltage | Positive (kV) | 100 |
Negative(kV) | 100 | |
Radio influence Voltage | Test voltage to ground(kV) | 7.5 |
Maximum RIV at1000kHz(μv) | 50 | |
Electro-mechanical Failing Load(kN) | 45 | |
Power frequency puncture voltage(kV) | 80 | |
Mechanical Impact Strength (n. m) | 5 | |
Color | Brown or White | |
6-33kV overhead transmission lines: Suitable for straight tower suspension strings and tension strings of 6-33kV high-voltage overhead transmission lines for straight towers and terminal towers.
Urban and rural outdoor distribution network: Applicable to overhead lines of urban and rural outdoor distribution systems. Can be used for conductor insulation suspension on distribution poles, capable of adapting to the complex terrain and climate conditions in urban and rural areas.
1. What about your delivery time?
It should depend on your order quantity.
2. How can you guarantee quality?
Samples are available and we can send to you. The sample fee will be deducted from your first order. We always do the final inspection before shipment.
3. What is the payment terms?
T/T 30% deposit in advance, and 70% balance payment before shipment.
4. What else can you do for us?
We supply the customized services, reply your inquiry within 24 hours and support the excellent after-sales services.
