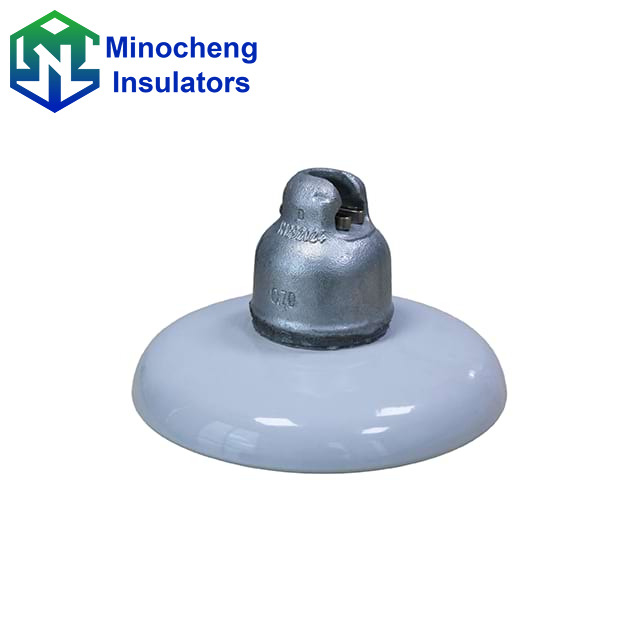

ANSI-Standard High-Voltage Compatibility: The 52-3 porcelain suspension insulator complies with ANSI C29.1/C29.2 standards, with a rated mechanical load of ≥70kN and a power frequency breakdown voltage of ≥110kV, specially engineered for 35-110kV power transmission lines.
Universal Connection Design for Enhanced Installation Flexibility: It adopts a dual-compatible connection structure of ball-and-socket and clevis-and-tongue, meeting the adaptation needs of different transmission towers and conductors. This design streamlines the installation process and reduces reliance on special hardware.

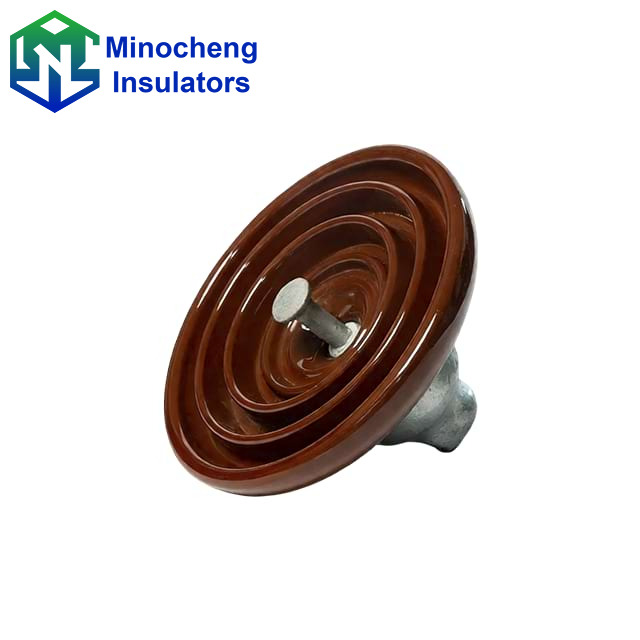

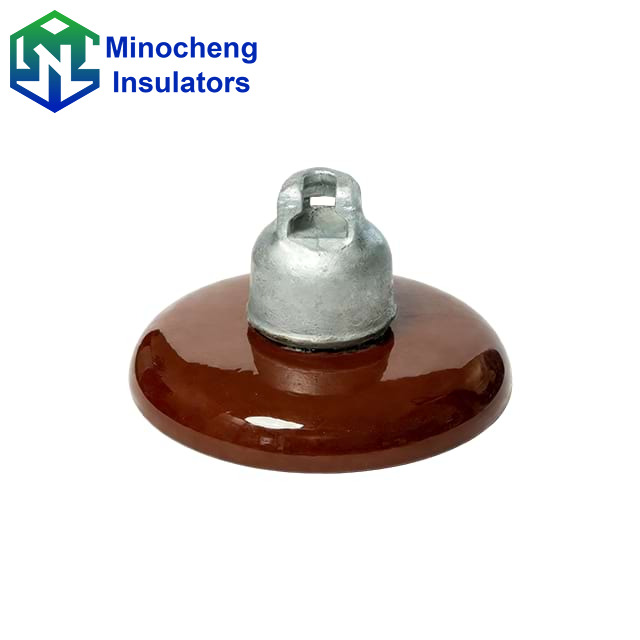

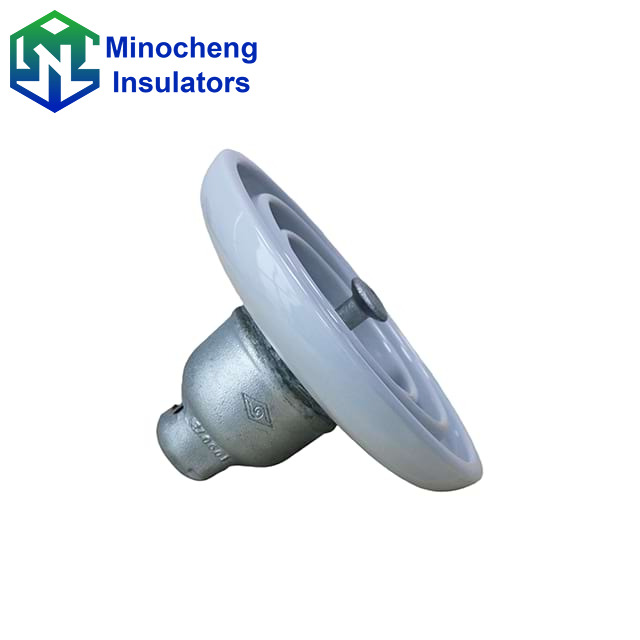

High-Quality Ceramic Material: Made of high-strength electrical ceramic with a uniform glaze finish, the porcelain disc features low contamination adhesion on the surface, which effectively prevents arc creepage and ensures stable insulation performance.
Model No. | ANSI 52-3 | |
Main Dimensions (mm) | Diameter | 254 |
Height | 146 | |
Creepage Distance(mm) | 292 | |
Power-Frequency AverageFlashover Voltage | Dry(kV) | 80 |
Wet(kV) | 50 | |
Critical-Impulse 15x40us WaveAverage Flashover Voltage | Positive (kV) | 125 |
Negative(kV) | 130 | |
Radio influence Voltage | Test voltage to ground(kV) | 10 |
Maximum RIV at1000kHz(μv) | 50 | |
Electro-mechanical Failing Load(kN) | 70 | |
Power frequency puncture voltage(kV) | 110 | |
Mechanical Impact Strength (n. m) | 6 | |
Color | Brown or White | |
35-110kV high-voltage overhead transmission lines: Widely used in the straight tower suspension strings, tension strings of strain towers and terminal towers of 35-110kV high-voltage overhead transmission lines.
Urban and rural backbone power distribution system: Suitable for outdoor overhead poles of 35-110kV backbone power distribution networks in urban and rural areas, capable of adapting to complex terrains such as mountains and plains, as well as variable climates.
Industrial / mining area high-voltage distribution lines: Applicable to 35-110kV high-voltage overhead distribution lines in industrial parks, mines, ports, etc.
