Outstanding mechanical performance and reliability: The rated mechanical load is up to 70kN, and the lightning impulse withstand voltage exceeds 100kV, ensuring stable operation in harsh weather and high-pressure environments.

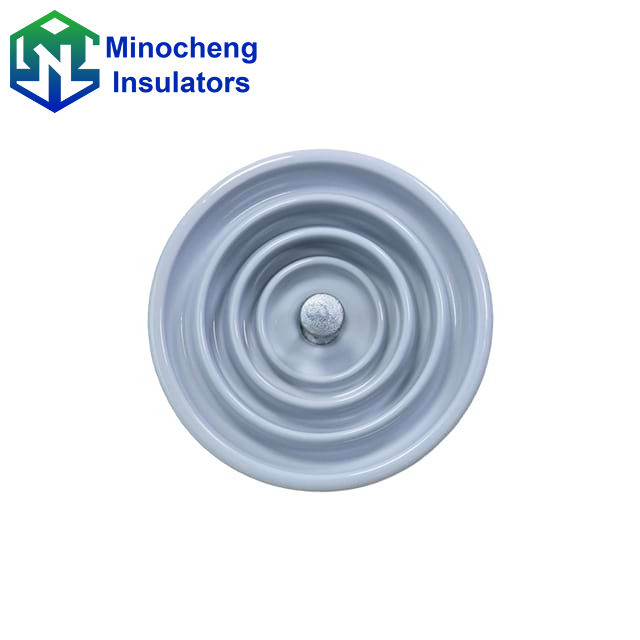

Excellent environmental resistance and self-cleaning ability: The product's canopy skirt has been optimized for aerodynamics, with a smooth shape, and has excellent self-cleaning performance in the wind and rain, effectively reducing the accumulation of dirt. It has strong temperature difference sudden change resistance, UV resistance and corrosion resistance.
Standardized economy and interchangeability: U70B (XP-70) as the industry standard model, has standardized dimensions and excellent interchangeability, facilitating line design, installation procurement and later maintenance and replacement.

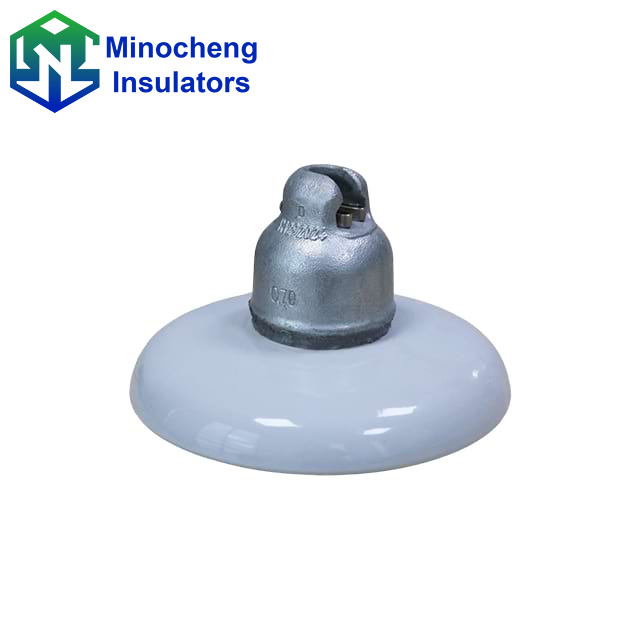

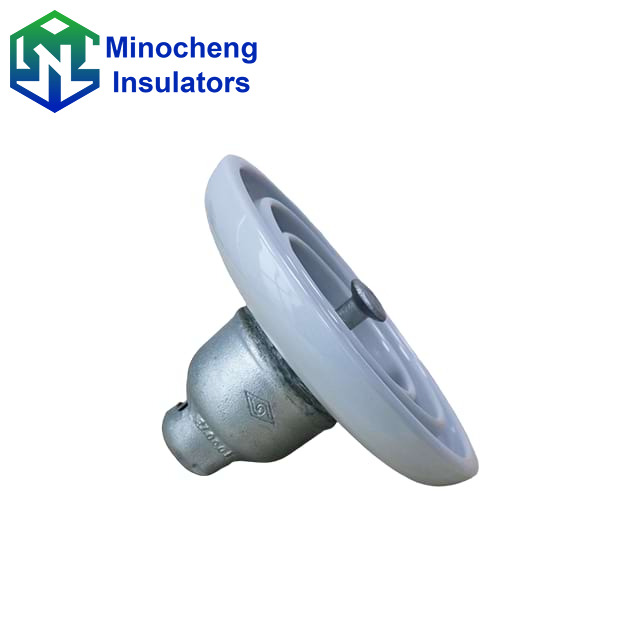

Model No. | U70B | |
Main Dimensions | Diameter(mm) | 255 |
Height (mm) | 146 | |
Nominal Creepage Distance(mm) | 320 | |
Combined M&E strength(kN) | 70 | |
Mechnical Impact strength(N. m) | 6 | |
Routine proof test load(kN) | 35 | |
Power frequency withstand voltage | Dry(kV) | 70 |
Wet (kV) | 40 | |
Dry lightning impulse withstand voltage(kV) | 100 | |
Power frequency puncture voltage(kV) | 110 | |
Radio influence Voltage | Test voltage to ground(kV) | 10 |
Maximum RIV at1000kHz(μv) | 50 | |
Net weight, approximate(kg) | 4.7 | |

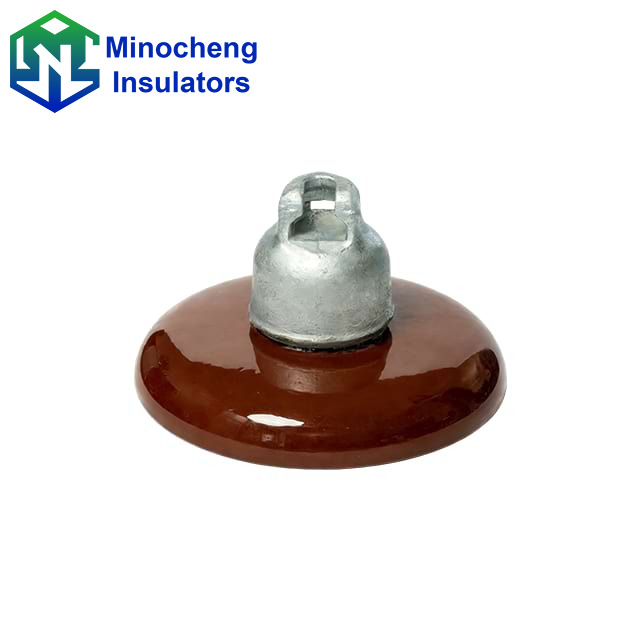

Color | Brown or White | |
High-voltage AC overhead transmission lines: As the core insulating component, they are applied in 10kV and above high-voltage overhead transmission lines to achieve insulation and isolation between conductors and towers as well as the ground. They can withstand the mechanical tension of the lines and high-voltage impacts, ensuring the safety and stability of power transmission in remote areas and across regions.
Substations and power distribution systems: The insulation and fixation of external live conductors of busbars and electrical equipment in various substations, achieving isolation of different potential conductors during the substation process, can withstand the complex electric field environment within the substation and prevent problems such as leakage and short circuits.
