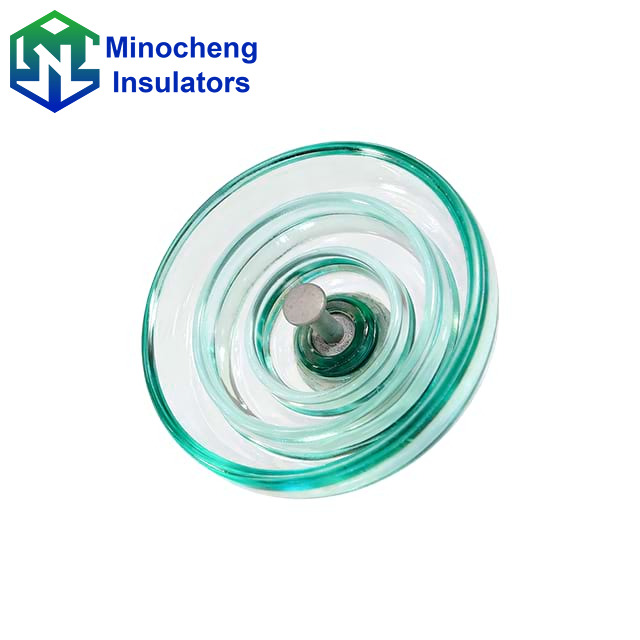

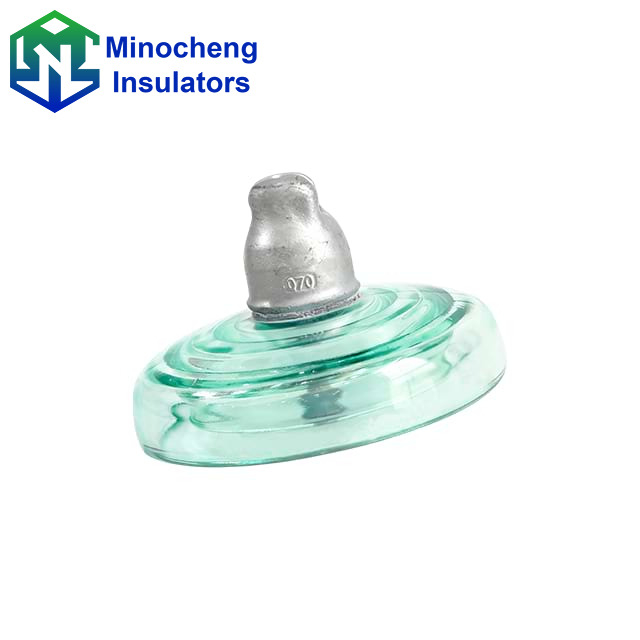

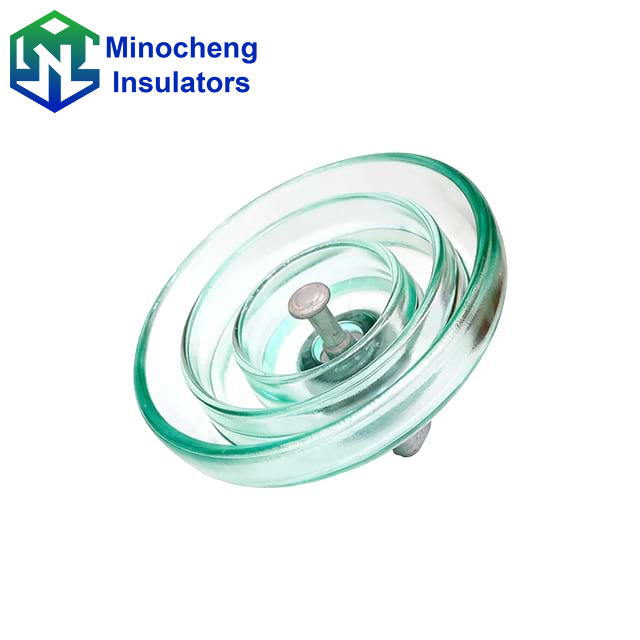

Standard Compliance & Stable Load Performance: Compliant with dual IEC/GB international standards and featuring a mechanical failing load of 70kN, it precisely meets the insulation and load-bearing requirements of 10-36kV and above high-voltage transmission lines with stable structural performance.
Dedicated Anti-pollution Structure & Excellent Flashover Resistance: Adopting an anti-pollution shed design, it optimizes the creepage distance to fit the application needs of polluted areas, effectively reducing dust and water vapor adhesion. It boasts outstanding pollution flashover and anti-aging performance, fundamentally avoiding line insulation faults caused by environmental pollution.
Practical Structural Design & Wide Adaptability:As a core insulating suspension component for high-voltage transmission, it features a rational structural design and is compatible with conventional hardware of overhead power systems, enabling convenient installation and matching without additional modification.
Model No. | U70BP/146 | |
Mechanical Failing Load(kN) | 70 | |
Main Dimensions | Height (mm) | 146 |
Diameter (mm) | 260/320 | |
Min Nominal Creepage Distance(mm) | 400/550 | |
Connection Type | 16 | |
Individual Tensile Load Test (kN) | 35 | |
Dry lightning Impulse Withstand Voltage (kV) | 110/140 | |
Power frequency withstand voltage | Dry(kV) | 80/90 |
Wet (kV) | 45/55 | |
Power Frequency Puncture Voltage (kV) | 130 | |
Radio Interference Voltage(10kV 1MHz) | ≤50 | |
Corona Inception Voltage Pin/ Cap (kV) | 18/22 | |
Power Frequency Electric Arc Test | 0.12s/20kA | |
Net weight (kg) | 5/7.5 | |
Light to Moderate Pollution Zone 10-36kV Overhead Transmission Lines: Suitable for main transmission lines in light to moderate pollution areas such as urban-rural fringe areas and farmland irrigation zones. The anti-pollution umbrella skirts can effectively prevent insulation degradation caused by dust and moisture adhesion, ensuring continuous and stable power supply for the regional power grid.
Distribution Lines in Coastal and Salt Spray Areas: Suitable for the construction and renovation of distribution lines in coastal villages and around ports.
Power Supply Lines in Industrial Parks and Mining Areas: Suitable for areas with industrial dust and slight corrosive gases such as industrial parks and mining areas.
Rural Grid Upgrading Pollution Area Lines Project: Suitable for lines in polluted areas such as irrigation areas and livestock farms involved in rural power grid upgrades.
1. What about your delivery time?
It should depend on your order quantity.
2. How can you guarantee quality?
Samples are available and we can send to you. The sample fee will be deducted from your first order. We always do the final inspection before shipment.
3. What is the payment terms?
T/T 30% deposit in advance, and 70% balance payment before shipment.
4. What else can you do for us?
We supply the customized services, reply your inquiry within 24 hours and support the excellent after-sales services.
