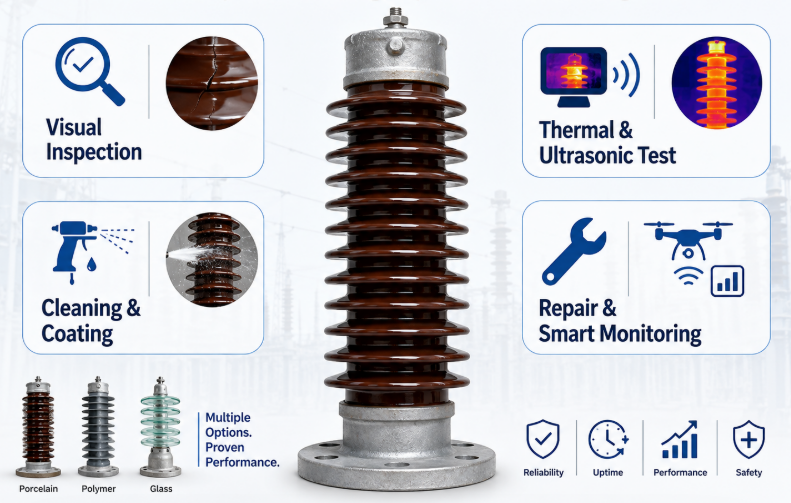

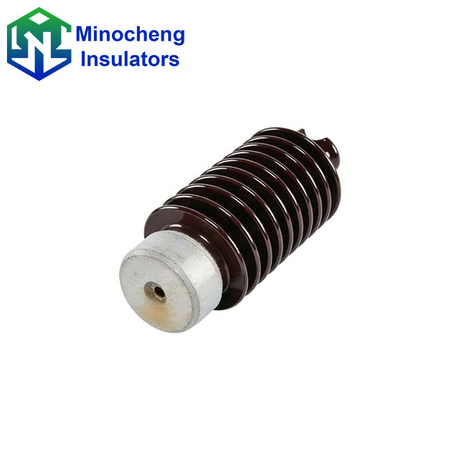

Insulators require a systematic combination of regular visual inspections, advanced diagnostic testing, structural integrity mapping, and specialized cleaning procedures to prevent electrical flashovers, manage environmental contamination, and ensure long-term grid reliability.
Importance of maintaining insulators
Inspection and diagnostic techniques
Cleaning and maintenance procedures
Repair and replacement of insulators
Innovations in the maintenance of insulators
Maintaining electrical insulation systems ensures the preservation of structural mechanical strength, prevents critical dielectric degradation, and eliminates the risk of catastrophic phase-to-ground flashovers in high-voltage substations.
The operational integrity of electrical distribution networks relies heavily on the physical state of structural insulation components. Over years of service, high-voltage infrastructure is continuously subjected to combined mechanical stresses, extreme thermal fluctuations, and intense electrical fields. Without regular, scheduled technical assessments, subtle material degradations such as micro-fractures, porcelain glazing erosion, or polymer sheath chalking can progress unnoticed, leading to sudden mechanical dropping or electrical failure under peak load conditions.
Environmental exposure exponentially accelerates the degradation process of standard utility insulation hardware. Industrial pollution, airborne saline particulates, agricultural chemical dusting, and ambient moisture accumulate on the external sheds of the equipment, creating a conductive layer across the dielectric surface. When relative humidity rises or light rain occurs, this contamination layer triggers leakage currents, dry-band arcing, and ultimately a complete system flashover that can severely damage surrounding substation assets.
Systematic maintenance directly extends the operational life cycle of high-voltage assets, optimizing capital expenditure for utility providers and industrial facilities. By identifying localized tracking or hardware corrosion early, maintenance engineers can execute targeted cleanings or individual component replacements rather than managing full-scale emergency substation outages. This proactive approach ensures consistent power quality, maintains line compliance with strict regulatory safety standards, and preserves grid resilience against extreme environmental disruptions.
Preserving the rated cantilever and tensile strength of structural support components prevents line drops during high-wind loading and seismic events.
Preventing surface carbon tracking maintains the required impulse withstand voltage across the equipment profile during lightning surges.
Targeted, scheduled maintenance intervals reduce emergency component procurement costs and minimize unplanned downtime penalties.
Component Material Profile | Minimum Tensile Strength | Standard Creepage Distance | Maximum Leakage Current | Expected Service Life |
Technical Electrical Porcelain | 120 kN | 25 mm per kV | 2.0 mA | 40 Years |
Toughened Dielectric Glass | 160 kN | 28 mm per kV | 1.5 mA | 50 Years |
High-Density Composite Polymer | 100 kN | 31 mm per kV | 0.5 mA | 25 Years |
Comprehensive inspection and diagnostic methodologies rely on a combination of visual analysis, thermal imaging, ultrasonic emissions detection, and specialized voltage-drop profiling to identify sub-surface structural defects.
Effective field diagnostics begin with systematic visual assessments, often aided by high-powered optical equipment or close-range aerial photography. Inspectors look for visible indicators of physical distress, such as porcelain shell chipping, radial glaze cracking, corona cutting on polymer sheaths, and severe corrosion on galvanized steel end-fittings. These visible anomalies provide immediate evidence of advanced physical degradation, indicating that the internal structural integrity of the high-voltage component may already be significantly compromised.
To detect internal, non-visible structural defects, engineering teams utilize infrared thermography to identify localized thermal anomalies caused by internal leakage currents. Defective sections within a multi-shell assembly or an industrial high-durability post insulator will exhibit distinct temperature variations compared to healthy surrounding components due to localized resistance changes. This non-contact diagnostic approach allows maintenance crews to rapidly scan entire substation switchyards under live electrical load conditions, mapping thermal profiles without interrupting power delivery.
Acoustic and ultrasonic diagnostic tools offer an additional layer of precision by monitoring the high-frequency emissions generated by partial discharges and localized corona activity. As the dielectric material breaks down internally, micro-sparking occurs within internal voids or along surface tracking paths, emitting specific ultrasonic frequencies between 20 kHz and 100 kHz. By capturing and analyzing these acoustic signatures with directional parabolic microphones, technicians can pinpoint exact fault locations before the material undergoes catastrophic dielectric breakdown.
Identifies localized resistive heating inside core rods and porcelain interfaces under live system loading.
Detects acoustic signatures of active partial discharges within internal material voids or along degraded sheds.
Measures axial voltage distribution across the component string to identify shorted or non-conductive internal sections.
Diagnostic Method | Primary Target Defect | Operating Frequency Range | Detection Sensitivity | Optimal Conditions |
Infrared Thermography | Internal Resistive Heating | 8 micrometers to 14 micrometers | 0.05 degrees Celsius | Dry, overcast night, high load |
Ultrasonic Detection | Surface Corona and Arcing | 38 kHz to 42 kHz | Minus 40 dB $\mu\text{V}$ | Low ambient wind, low humidity |
E-Field Measurement | Internal Axial Insulation Failures | 50 Hz to 60 Hz | 5 percent voltage variation | Stable live line operation |
Scheduled cleaning protocols require precise application of high-pressure water washing, dry abrasive blasting, or the application of specialized hydrophobic coatings to eliminate conductive surface contamination.
The selection of an appropriate cleaning methodology depends heavily on the specific type of contamination, the material composition of the insulation system, and whether the work must be performed under energized or de-energized conditions. High-pressure water washing is highly effective for removing soluble salts, light industrial dust, and agricultural residues from non-porous porcelain and glass surfaces. This procedure demands strict adherence to safety guidelines regarding water conductivity, nozzle pressure, and minimum safe clearance distances to prevent the washing process itself from inducing a phase-to-ground flashover.
For highly adherent, non-soluble contaminants such as heavy industrial cement dust, chemical residues, or dense environmental sealants, dry abrasive blasting techniques are utilized. Media such as ground walnut shells, limestone powders, or dry ice pellets are blasted at the surface using regulated compressed air to strip away the stubborn pollution layer without scoring or damaging the underlying protective glaze. This restoration process is vital for ensuring that a robust station post insulator maintains its engineered surface resistance when exposed to heavy fog or morning dew.
To provide long-term protection against recurring contamination in severe environments, maintenance teams frequently apply Room-Temperature Vulcanizing (RTV) silicone rubber coatings to porcelain and glass substrates. These specialized coatings impart high surface hydrophobicity, causing moisture to form distinct, isolated droplets rather than a continuous conductive film. This hydrophobic action prevents leakage current development and significantly extends the required cleaning intervals for assets operating in aggressive coastal or industrial pollution zones.
Utilizes demineralized water streams to rapidly strip away water-soluble environmental salts and particulate accumulation under live or dead-line conditions.
Employs soft, organic or specialized particulate media to physically break down stubborn industrial crusts without altering the smooth ceramic glaze.
Establishes a continuous chemical boundary layer that prevents water sheet formation, suppressing leakage current pathways.
Cleaning Methodology | Required Media Quality | Operating Pressure | Target Contaminant Profile | Material Compatibility |
High-Pressure Washing | Less than 100 micro-Siemens per cm | 3.5 MPa to 5.0 MPa | Soluble salts, loose dust, soot | Porcelain, Toughened Glass |
Dry Abrasive Blasting | Organic walnut shells or CaCO3 | 0.4 MPa to 0.6 MPa | Cement crusts, heavy slag, resins | Porcelain Only |
RTV Silicone Coating | Polymer compound with TiO2 filler | Brush or spray application | Long-term salt and industrial fog | Ceramic and Glass Substrates |
Maintenance Tip: When performing high-pressure water washing under live-line conditions, the water resistivity must be verified continuously and must never fall below 1000 ohm-cm. Washing must always progress from the bottom components upward to prevent contaminated water runoff from cascading down and shorting out lower unwashed sections, which could cause an immediate phase-to-ground flashover.
Insulator repair and replacement workflows mandate immediate component extraction and structural upgrades whenever physical wear, deep core tracking, or mechanical component distortion exceeds strict engineering tolerances.
When structural diagnostics reveal deep physical damage that penetrates past the surface glaze or outer protective sheath, field repair is generally unfeasible, and full replacement becomes mandatory. For porcelain units, any structural chip that reduces the total engineered creepage distance by more than fifteen percent, or any crack that propagates into the core matrix, represents an unacceptable risk of mechanical failure. In composite polymer units, deep rod exposure, sheath splitting, or evidence of internal core tracking requires immediate extraction to prevent brittle fracture or sudden mechanical dropping of the conductor line.
The process of replacing structural insulation components requires specialized rigging, temporary line-support structures, and precise mechanical load transfer protocols. Technicians utilize insulated hot-sticks, bypass switches, and temporary tension links to safely transfer the heavy conductor weight away from the compromised assembly. For critical distribution setups, installing a high-specification ANSI 57-3 line post insulator guarantees that the line retains its rated cantilever performance and structural alignment under extreme regional wind and ice load parameters.
Employs calibrated tension links and hot-line tools to safely lift the live or dead conductor load off the compromised support hardware.
Evaluates depth of surface erosion to determine if a component can be field-serviced or requires complete extraction from the cross-arm.
Ensures that the replacement units are mounted perfectly square to eliminate uneven cantilever forces or localized stress concentration.
Damage Type | Maximum Allowable Limit | Required Remedial Action | Structural Risk Level |
Ceramic Glaze Chipping | Less than 25 mm square total area | Surface cleaning and silicone sealing | Low Structural Risk |
Core Crack Propagation | Zero Tolerance (Any depth) | Immediate full component replacement | Critical Structural Risk |
Polymeric Sheath Chalking | Depth less than 0.5 mm | Application of protective polymer spray | Medium Structural Risk |
End-Fitting Galvanization Loss | Less than 20 percent surface area | Mechanical wire brushing and zinc cold galvanizing | Low Structural Risk |
Modern innovations in insulation maintenance leverage autonomous unmanned aerial vehicles (UAVs), continuous-monitoring IoT sensors, and advanced self-cleaning nanostructured materials to minimize manual labor requirements.
Unmanned aerial vehicles (UAVs) equipped with high-resolution optical, thermal, and ultraviolet cameras have revolutionized utility inspection workflows across expansive transmission corridors. These autonomous drones can fly pre-programmed paths around energized substation structures, capturing ultra-detailed imagery from multiple angles that would be impossible or dangerous for ground-based personnel to obtain. The integrated UV payload detects daylight corona discharges, allowing maintenance software to automatically map active partial discharge sites across large outdoor switchyards.
Simultaneously, the integration of Internet of Things (IoT) sensor nodes directly onto high-voltage hardware permits real-time monitoring of active leakage currents and ambient environmental conditions. These compact, line-powered sensors continuously measure currents passing through the grounding base of critical supports, transmitting data wirelessly to central asset management platforms. When evaluating a specialized high-voltage post insulator installation, these continuous data streams enable predictive analytics engines to calculate exact contamination accumulation rates and schedule maintenance only when necessary.
Advanced material science research is also introducing self-cleaning nanostructured coatings that replicate the hydrophobic properties found in nature. These titanium dioxide and fluoro-silane composite coatings permanently alter the surface energy of ceramic and glass substrates, allowing standard rainfall to completely wash away accumulated dust and industrial particulates. By preventing the initial adhesion of environmental contaminants, these innovative materials drastically reduce the need for manual washing and abrasive blasting, lowering total operational maintenance costs while optimizing grid reliability.
Deploys multi-spectral aerial imaging arrays to systematically audit long-distance transmission infrastructure without requiring circuit outages.
Utilizes distributed IoT hardware to stream surface leakage current levels directly into utility control centers for real-time risk assessment.
Integrates self-cleaning chemical layers into the manufacturing process to minimize long-term pollutant accumulation in harsh environments.
Advanced Technology | Core Operating Principle | Primary Maintenance Benefit | System Integration Level |
Multi-Spectral UAV Auditing | Autonomous flight with UV/IR sensors | Eliminates manual climbing and line de-energization | Fully Commercialized |
IoT Base-Current Monitoring | Hall-effect wireless sensor nodes | Provides real-time flashover risk prediction | Commercial Deployment Phase |
TiO2 Photo-Catalytic Coatings | Solar UV activation with ultra-hydrophobicity | Eliminates manual cleaning cycles in polluted zones | Advanced Field Trial Phase |
The long-term reliability and operational safety of high-voltage electrical infrastructure depend on rigorous, scientifically managed insulation maintenance strategies. By combining traditional diagnostic techniques like visual inspection and thermal scanning with advanced cleaning methodologies and cutting-edge innovations—such as autonomous drone auditing and real-time IoT leakage monitoring—utility operators can effectively mitigate environmental contamination and material wear. Implementing these structured maintenance frameworks protects critical grid assets from catastrophic flashover failures, extends the operational lifecycle of substation components, and ensures continuous, high-quality power delivery across industrial and commercial networks.
