What is a post insulator in a substation?

A post insulator in a substation is a specialized, high-voltage insulating device designed to provide robust mechanical support for electrical conductors, busbars, and switchgear while effectively isolating them from the grounded structure. Constructed from high-strength electrical porcelain, composite polymers, or tempered glass, these rigid, column-like components withstand massive mechanical stresses—including cantilever, tensile, compression, and torsional loads—under extreme environmental and electrical conditions.

At a Glance

Core Function of Post Insulators in Substation Infrastructure

The core function of a post insulator in a substation infrastructure is to ensure absolute electrical isolation between active high-voltage conductors and the grounded steel or concrete supporting structures while simultaneously bearing significant mechanical weight. This primary dual-purpose functionality ensures that high-voltage currents remain restricted to their designated paths, preventing dangerous short circuits, phase-to-ground faults, and catastrophic system failures within the power distribution grid.

Substations serve as the critical hubs of electrical transmission networks, stepping voltages up or down to facilitate efficient long-distance power transport. Within these facilities, rigid copper or aluminum busbars carry immense electrical energy. Because these conductors cannot float freely, they must be securely anchored to the substation framework. Station post insulators act as these structural pillars, providing the necessary rigid spacing required to maintain safe clearances between phases and ground elements.

Beyond basic electrical isolation, these components must endure relentless mechanical stresses. They are subjected to the heavy continuous dead weight of suspended busbars, dynamic forces generated by wind and ice accumulation, and sudden, violent magnetic stresses caused by short-circuit faults. By combining excellent dielectric properties with high structural rigidity, these components maintain the physical and electrical integrity of the entire substation environment under both normal operational states and emergency surge conditions. For high-quality, resilient power grid solutions, engineering teams rely on verified station post insulator configurations to secure high-voltage bus systems safely.

Key Types of Post Insulators Used in Substations

The key types of post insulators used in substations are fundamentally categorized by their material composition and physical design, primarily dividing into traditional solid-core porcelain station posts and modern polymer composite post insulators. Each specific category features unique structural characteristics, weight profiles, and performance dynamics that make them suitable for distinct environmental conditions, voltage classes, and mechanical load requirements.

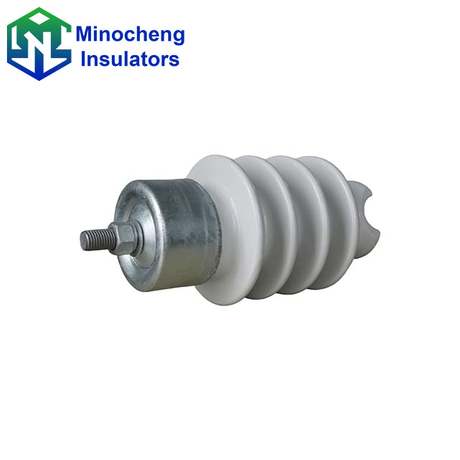

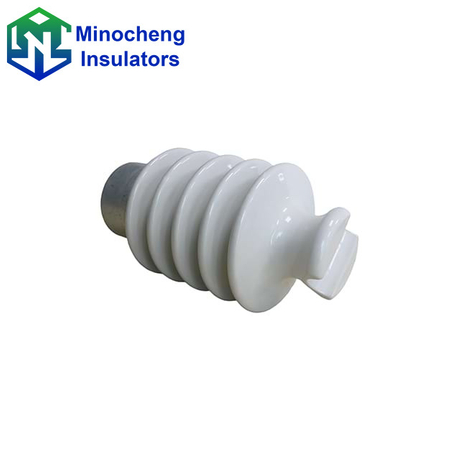

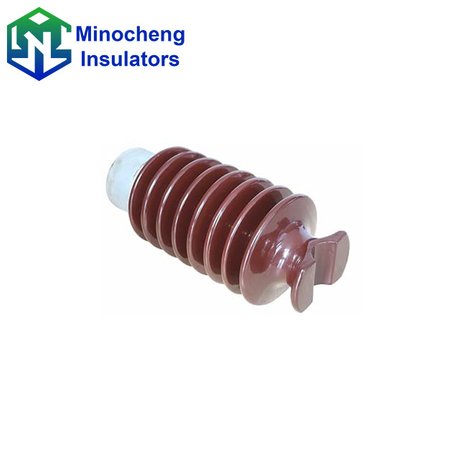

Porcelain station posts have served as the industry standard for decades due to their exceptional longevity, high compression strength, and excellent resistance to atmospheric aging. These units are typically manufactured as solid-core columns or stacked cylindrical pieces with outer sheds designed to shed water and extend the external electrical leakage path. Porcelain is highly resistant to chemical attack, ultraviolet radiation, and surface tracking, making it an incredibly stable choice for standard outdoor switchyards where long-term material permanence is a primary design priority.

In contrast, composite post insulators leverage a lightweight design consisting of a high-strength fiberglass core rod housed inside a silicone rubber housing with integrated weather sheds. Composite variations offer distinct advantages in regions prone to intense seismic activity or heavy industrial pollution, as their hydrophobic surface naturally repels moisture and prevents continuous contaminant films from forming. Furthermore, their shatter-proof nature dramatically improves safety during handling, transportation, and unexpected structural impacts.

Comparison of Substation Post Insulator Material Types

Essential Technical Specifications and Design Standards

The essential technical specifications and design standards of a post insulator define its strict operational boundaries, covering a comprehensive suite of electrical ratings, mechanical strength metrics, and physical dimensions that must comply with global standards like ANSI or IEC. Engineering teams evaluate these precise specifications during the substation design phase to match the component precisely to the system voltage, environmental contamination level, and calculated physical load lines of the installation site.

Electrical ratings dictate the insulator's ability to resist voltage breakdowns across its surface or through its body. The nominal system voltage dictates the basic insulation level, which includes the lightning impulse withstand voltage and the power frequency wet and dry flashover voltages. The physical design must incorporate sufficient creepage distance—the shortest path along the outer surface of the insulating material between the energized metal fittings and the grounded base—to prevent tracking and flashovers under wet, humid, or heavily polluted conditions.

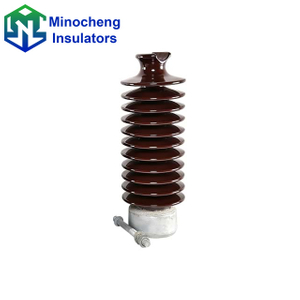

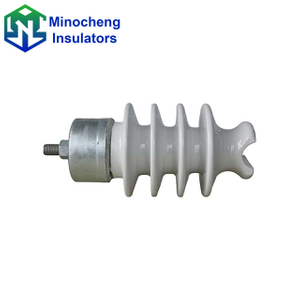

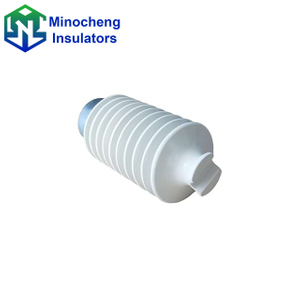

Mechanical load specifications are equally critical, detailing the maximum forces the unit can endure without structural deformation or structural breakage. Cantilever strength is the primary mechanical metric analyzed for post configurations, as it measures the maximum perpendicular force the top fitting can handle relative to the fixed base. Torsional, tensile, and compressive ratings are also calculated to account for rotational forces from disconnecting switch operations and vertical loads from heavy hardware assemblies. To meet stringent North American utility requirements, certified hardware such as the ANSI 57-3 post insulator specification provides verified dimensions and standardized ratings to ensure reliable performance.

Standard Specifications for Industrial Post Insulators

Structural Components and Manufacturing Materials

The structural components and manufacturing materials of a substation post insulator consist of an optimized combination of a high-dielectric insulating body, robust end fittings, and specialized internal bonding agents engineered to form a unified mechanical pillar. The precise integration of these distinct elements determines the component's ultimate ability to withstand high voltage potentials while supporting tremendous weight loads over decades of uninterrupted outdoor exposure.

The insulating body represents the bulk of the component, shaped with a series of exterior sheds or skirts. These sheds are strategically spaced and angled downward to maximize the dry surface area during heavy rainfall, preventing a continuous water sheet from bridging the gap between the energized top and the grounded bottom. In porcelain models, a refined mixture of clay, feldspar, and quartz is fired at extreme temperatures to create a dense, non-porous vitreous structure. In composite models, a reinforced epoxy fiberglass rod acts as the core, absorbing all tensile and bending stresses, while an outer layer of vulcanized silicone rubber provides environmental protection.

The end fittings, located at the extreme top and bottom of the insulator column, are typically made from hot-dip galvanized cast iron or high-strength aluminum alloys. These metal caps are designed with specific bolt-hole patterns to allow secure connection to substation steel structures, busbar clamps, or switch mechanisms. The interface between the insulating body and the metal fittings is bonded using high-grade cement formulas or specialized crimping techniques, creating a joint that transfers immense physical forces smoothly without concentrating localized stress points that could lead to structural fracturing.

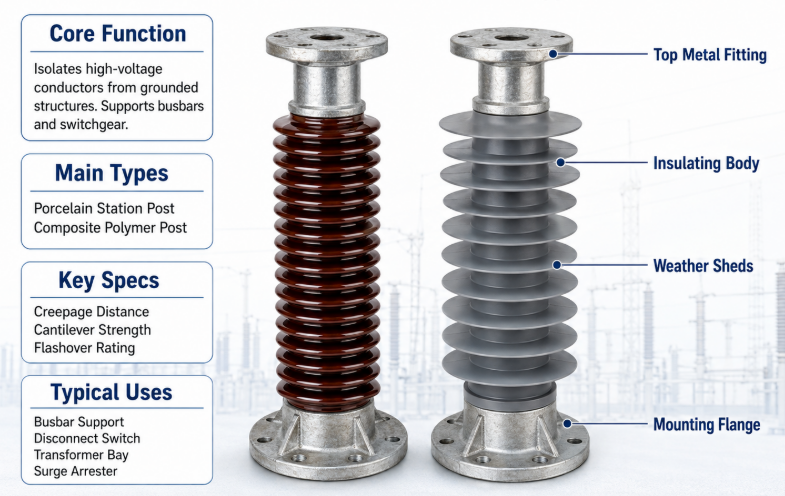

Structural Breakdown of a Station Post Insulator

Critical Application Scenarios in Modern Substation Layouts

The critical application scenarios in modern substation layouts involve deploying post insulators wherever high-voltage conductors must be rigidly fixed, repositioned, or mechanically switched relative to the grounded structural framework. Because substation layouts require intricate routing of multiple electrical phases, these components are widely distributed throughout switchyards, transformer bays, and capacitor bank installations to maintain strict phase-to-phase and phase-to-ground clearances.

1. Air-Insulated Disconnect Switches: Post insulators form the active rotating or stationary pillars that support the movable conductive blades of high-voltage disconnect switches, enduring heavy torsional twisting forces during open and close operations.

2. Rigid Busbar Support Matrices: They serve as steady structural pedestals spaced at calculated intervals along aluminum or copper bus runs, keeping the heavy conductive tubes perfectly horizontal and preventing sagging under heavy wind or ice loading.

3. Surge Arrester Elevated Mounts: They elevate and isolate the active components of overvoltage surge arresters, ensuring that normal system voltages do not bypass the protective equipment under typical operating conditions.

4. Line Trap and Wave Filter Racks: They provide stable, elevated platforms for heavy line traps used in power line carrier communication systems, isolating high-frequency signals from grounding structures.

Each application places distinct demands on the insulator's physical capabilities. For instance, a busbar support requires maximum vertical compression and horizontal cantilever strength, while a disconnect switch insulator demands superior rotational torque resistance. Proper selection ensures the long-term reliability of the localized power grid network.

Maintenance Strategies and Diagnostic Best Practices

The maintenance strategies and diagnostic best practices for substation post insulators focus on identifying early surface contamination, structural micro-fractures, and hardware degradation before these hidden issues escalate into catastrophic dielectric breakdown or physical failure. Because substations operate under continuous voltage stress, implementing a structured regimen of visual inspections, thermal imaging, and technical testing is crucial to maximizing the service life of these critical grid assets.

Environmental pollution, such as marine salt spray, industrial chemical dust, or agricultural fertilizer residue, gradually deposits onto the outer weather sheds of the insulator. When mixed with moisture from fog, dew, or light rain, these contaminants create a conductive film that allows tiny currents to leak across the surface. This phenomenon, known as tracking, can escalate into a full phase-to-ground flashover, damaging surrounding transformers or switchgear. Regular monitoring allows maintenance teams to schedule targeted cleaning operations or apply specialized protective coatings to mitigate these risks effectively.

Maintenance Guide (Operational Best Practices): To maintain peak substation reliability, operation crews should execute the following procedures:

• Infrared Thermography Scanning: Conduct regular thermal imaging sweeps under full load conditions to detect localized heating anomalies, which often indicate internal structural defects or high-resistance bonding joints.

• Surface Contamination Assessment: Regularly measure the Equivalent Salt Deposit Density on sample units to determine exactly when washing or silicone coating applications are required.

• Acoustic Emissions Testing: Utilize ultrasonic detectors during humid weather to listen for excessive corona discharge or tracking noise emanating from the insulator columns.

• Visual Inspection Checks: Use high-power optics to check for physical chips in porcelain sheds, cracking or tearing in polymer housings, and oxidation on galvanized end fittings.

By adhering to these systematic diagnostic routines, utility companies significantly reduce unplanned outages, protect costly substation assets, and ensure safe, continuous electrical power distribution to downstream consumers.
